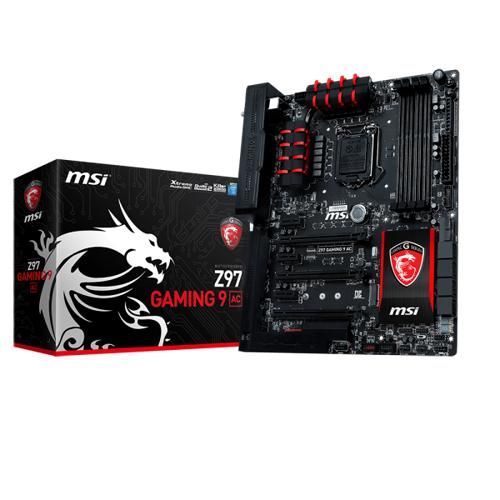

Fiche Produit MSI Z97 GAMING 9 AC
Socket LGA1150 package
Processeurs Supports 4th and 5th Generation Intel® Core Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1150
Chipset Intel® Z97 Express Chipset
Mémoire 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
Support four DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*/3100*/3200*/3300*(*OC) MHz DRAM, 32GB Max
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- Supports non-ECC, un-buffered memory
Slots d´extension 3 x PCIe 3.0 x16 slots, (support x16, x8/x8, x8/x4/x4 modes)
3 x PCIe 2.0 x1 slots
Contrôleurs Intel Z97 Express Chipset
- 6x SATA 6Gb/s ports (SATA1~6)
- 1x M.2 port*
- M.2 port supports M.2 SATA 6Gb/s module
- M.2 port supports M.2 PCIe module up to 10Gb/s speed**
- M.2 port supports 4.2cm/ 6cm/ 8cm length module
- Supports RAID 0, RAID1, RAID 5 and RAID 10***
- Supports Intel® Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology****
ASMedia ASM1061 Chipset
- 2 x SATA 6Gb/s ports (SATA7~8)
VGA Intégrée ( GPU ) 1 x HDMI port, supporting a maximum resolution of 4096X2304@24Hz/ 2560X1600@60Hz/ 3840X2160@60Hz/1920X1200@60Hz
1 x DisplayPort, supporting a maximum resolution of 4096X2304@24Hz/ 2560X1600@60Hz/ 3840X2160@60Hz/1920X1200@60Hz
Réseau 1x Killer E2205 Gigabit LAN controller*
Wi-Fi/Bluetooth expansion module with Intel Dual Band Wireless-AC 7260 chip.Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
Audio Realtek® ALC1150 Codec - 7.1-Channel High Definition Audio
Ports USB Intel Z97 Express Chipset
- 4x USB 3.0 ports available through the internal USB connectors
- 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors*)
ASMedia ASM1074 Chipset
- 6 x USB 3.0 ports on the back panel
ASMedia ASM1042 chipset
- 2 x USB 3.0 ports on the back panel
* Internal JUSB1 connector supports MSI Super Charger.
Connectivité 1 x PS/2 keyboard/ mouse combo port
1 x Clear CMOS button
1 x LAN (RJ45) port
2 x USB 2.0 ports
8 x USB 3.0 ports
1 x Optical S/PDIF OUT connector
6 x OFC audio jacks
1 x HDMI port
1 x DisplayPort
SLI / CrossFire Supports 3-Way AMD CrossFire Technology - Supports 2-Way NVIDIA® SLI Technology
Format ATX Form Factor; 30.5 cm x 24.4 cm
Divers Support for Windows 8.1/8/7
